VIN #2DBUAT9W8T1007516
stock # DIEMO-07516
Vehicle available at Straightline RV & Marine
High Sides!
Frame: 6061 All-Aluminum Frame

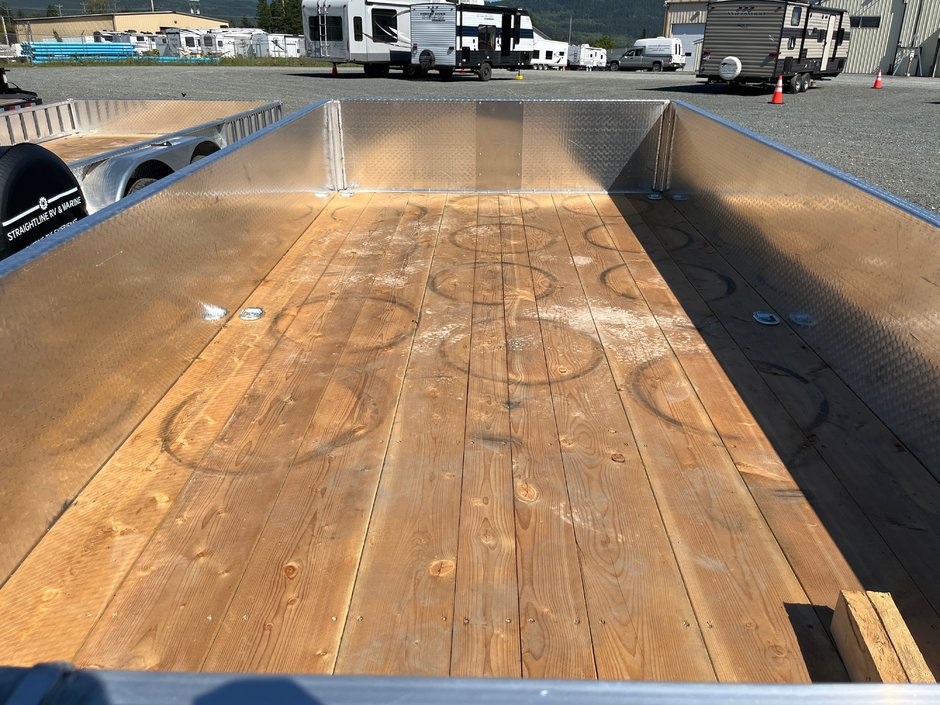

Decking: 2" x 10" Douglas Fir / Larch Plank Floor
Side Height: 13.5" (Deck to Top of Flange)
Tandem 3,500 lb Drop Axles
Electric Brakes
GVWR: 7,000 lbs
Zinc-Plated Axle Mounting Brackets with Polypropylene Tape
Folding Rear Ramp, Rated at 3,000 lbs
Ramp Unfolded Size: 54" L x 71" W (Ramp width equals trailer width – 5")
Ramp Folds Down onto Deck
2-5/16" Ball Coupler
Max Tongue Weight: 2,100 lbs
Polypropylene Tape Protection
Safety Chains:
3/8" x 35"
16,200 lb Rating
Safety Latch Included

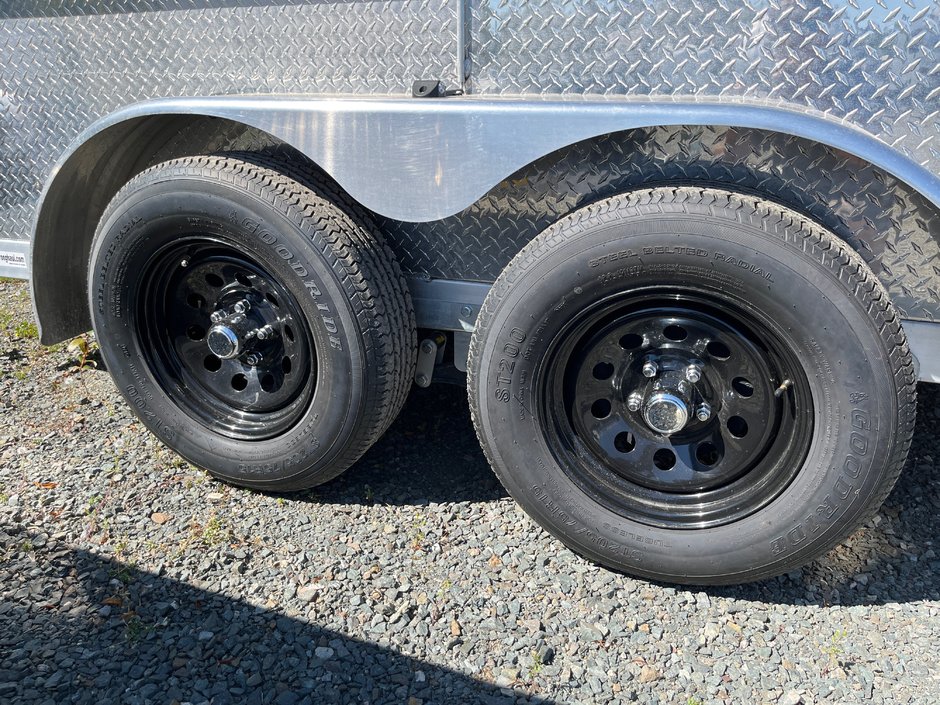

ST205/75R15 Radial Tires, 6-Ply
Modular-Style Steel Wheels
15" Diameter
5-Lug on 4.5" Bolt Pattern
Black Finish
Spare Tire Mount
Location varies (front or side, depending on toolbox configuration)
4,000 lb Zinc-Plated Lashing Rings
6 Rings on 12' Models
6 Rings on 14' Models
6 Rings on 16' Models
8 Rings on 18' Models
LED Lighting Package
7-Pin RV-Style Electrical Connector
Junction Box
Breakaway Kit with Battery and Charger
Enclosed Wiring
Protected with Tubing/Hose
Sealed with Silicone
Deck-to-Ground Height: 18"
Ground-to-Coupler Height: 15" (When Level)
A-Frame Mounted Jack, Rated at 5,000 lbs
